Pressure switchPS-20 Series
High-Pressure-Resistant, Highly Durable, Versatile Pressure Switch

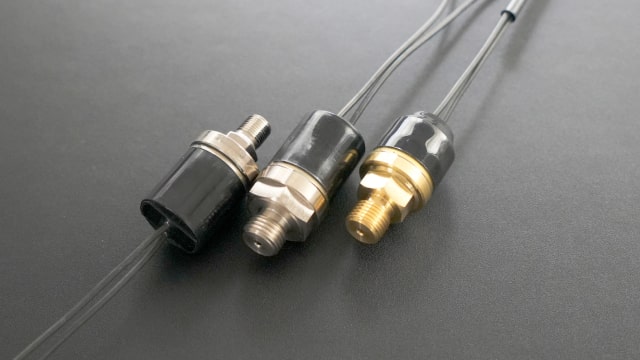

Versatile pressure switch which is available in a wide range of pressures and media.#250 tab terminal non-waterproof type, water-proof lead type, and water-proof integral connector type are available.
Dimensional Drawing
Approved by:
| UL | |
|---|---|
| CUL | |
| VDE | |
| JET | |
| CSA | |
| TUV | |
| SEMKO | |
| SAA | |
| CQC |
Applications
Automotive/Hydraulic equipment
Pneumatic equipment
Pneumatic equipment
Feature 1
As the unit is adopting electric wire drawing out type, the connector can be arbitrarily set.
Feature 2
Copper-based spring type with large capacitance and a stainless spring type for high endurance are available.
Specifications
| Type | Single pole - single throw |
|---|---|
| Rated Current | DC12V 5A MAX50W DC24V 2A Resistive load |
| Operating Pressure | Any value between 0.1 and 12MPa can be specified. |
| Automatic Reset Pressure | Any value can be specified within the range that satisfies the differential. |
| Differential | 20 and 50% or more of operating pressure. |
| Pressure Torerance | ±0.03MPa or ±10% of operating pressure, whichever greater |
| Endurance | 100,000 cycles or 10 million cycles dependent on the conditions |
| Dielectric Strength | AC500V 1min or AC600V 1sec |
| Insulation Resistance | 10MΩ or more(DC 500V) |
| Heat Resistance | MAX120°C |
