Thermal SensorOV-2
Platinum Thermal Sensor
Platinum resistance temperature sensor covered with stainless steel tube. It provides temperature sensing up to 500°C.

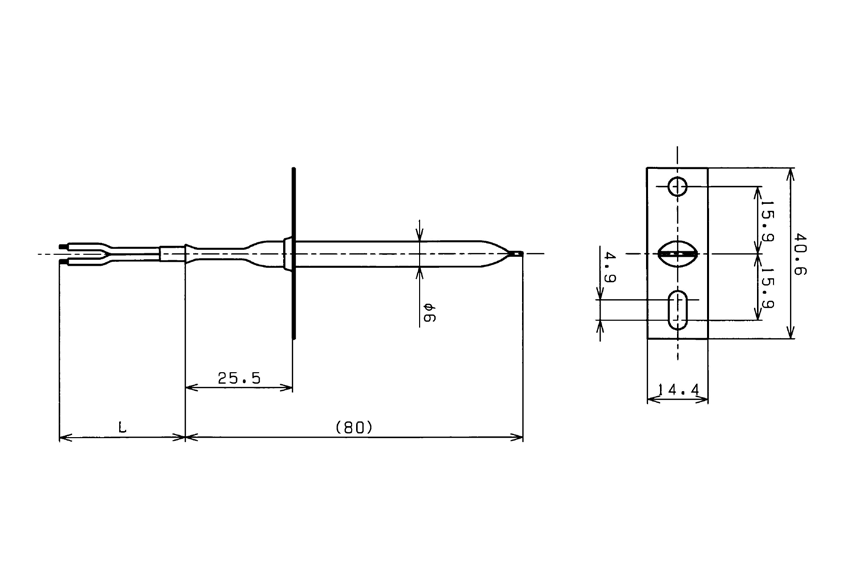

Dimensional Drawing
Approved by:
| UL | |
|---|---|
| CUL | |
| VDE | |
| JET | |
| CSA | |
| TUV | |
| SEMKO | |
| SAA | |
| CQC |
Applications
Large conventional oven
Feature 1
This sensor, using a platinum resistor, has an excellent linearity of resistance to temperature up to 500°C.
Specifications
| Type | Platinum sensor |
|---|---|
| Rated Current | DC12V 2mA |
| Heat Resistance | 500°C |
| Tolerance | ±4.8Ω(0°C) |
| Resistance | 1000Ω(0°C) |
| Temperature coefficient | TCR(0-100°C) 3750ppm/°C (or3850ppm/°C) |
