Bimetallic ThermostatCH-15, CH-152
High Capacity, High Temperature, Compact Thermostat
This is the ceramic body type of the CS-7 type.Thanks to its ceramic casing, this model shows excellent heat resistance, and thus it is suitable for installation and use under high temperature atmosphere.

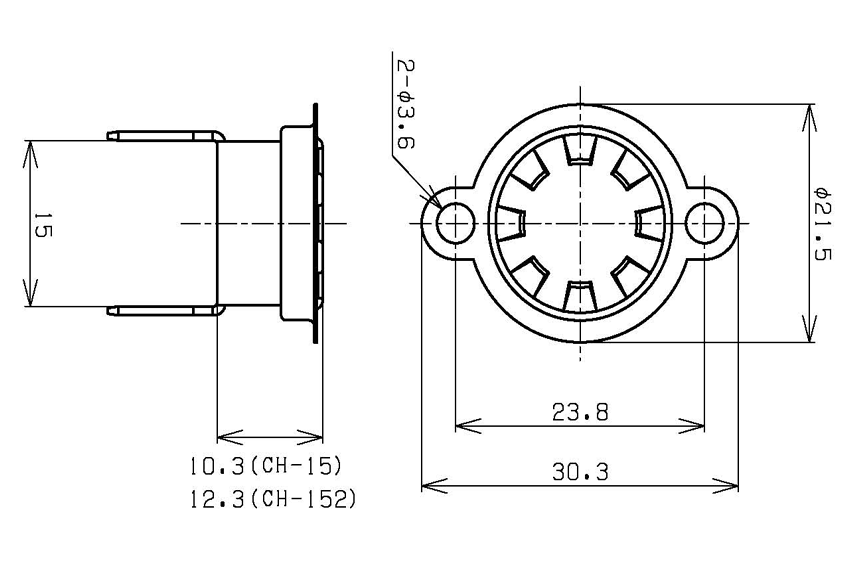

Dimensional Drawing
Approved by:
| UL | Compliant (CH-15, CH-152) |
|---|---|
| CUL | Compliant (CH-15, CH-152) |
| VDE | Compliant (CH-15, CH-152) |
| JET | Compliant (CH-15, CH-152) |
| CSA | Compliant (CH-15, CH-152) |
| TUV | Compliant (CH-15, CH-152) |
| SEMKO | Compliant (CH-152) |
| SAA | Compliant (CH-152) |
| CQC | Compliant (CH-15) |
Applications
Coffeemaker
Drinking water dispenser
Electric kettle
Oil fan heater
Drinking water dispenser
Electric kettle
Oil fan heater
Feature 1
The ceramic is used for the body.It corresponds to the high temperature area by the same size as the CS-7 type.
Feature 2
CH-152
The CH-152 is only 2mm taller than CH-15 types.
Feature 3
CH-15L
Microcurrent type
Feature 4
The terminals, caps, and attachment fittings, have a standard specification.The best specifications can be selected.
Specifications
| Type | Single pole - single throw |
|---|---|
| Rated Current | AC125V 15A DC12V 10A AC250V 10A DC24V 5A [Microcurrent type(CH-15L)] AC250V/DC24V or less 200mA or less Resistive load Subject to limitations under the safety standards. |
| Operating Temperature | Any temperature up to 280°C can be specified. Subject to limitations under the safety standards. |
| Automatic Reset Temperature | Any value can be specified within the range that satisfies the differential. |
| Differential | Operating temperature 100°C or more : 10deg or more 100°C or more : 10% or more |
| Temperature Tolerance | Operating temperature 150°C or less : ±5°C or more 150°C or more : ±5% or more |
| Endurance | 10,000 cycles |
| Dielectric Strength | AC1,500V 1min or AC1,800V 1sec |
| Insulation Resistance | 100MΩ or more(DC 500V) |
| Circuit Resistance | 50mΩ or less |
| Heat Resistance | 200°C |
