ActuatorActuator
Heat (Temperature) Sensing Displacement Element
Repurposed version of a temperature sensing element used in a thermostat, in the shape to match each application. Mechanical control is enabled by using a displacement by temperature.

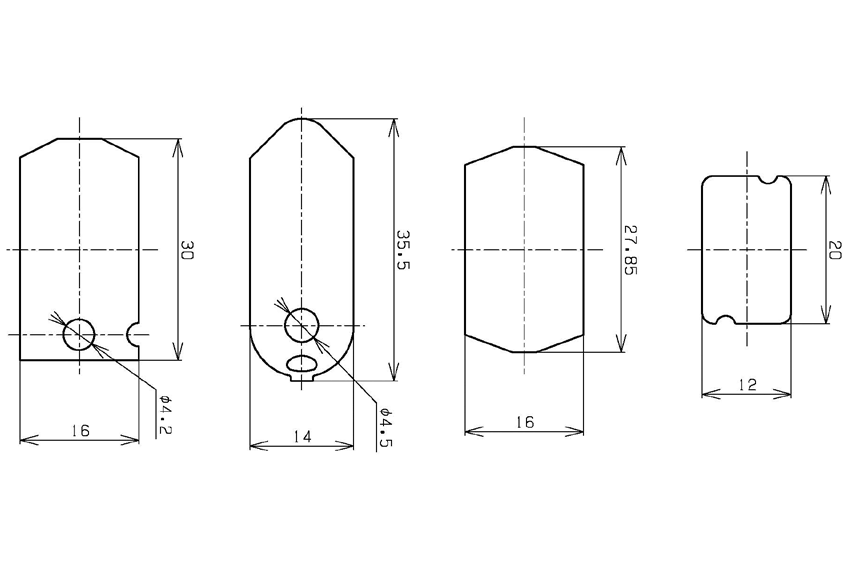

Dimensional Drawing
Approved by:
| UL | |
|---|---|
| CUL | |
| VDE | |
| JET | |
| CSA | |
| TUV | |
| SEMKO | |
| SAA | |
| CQC |
Applications
Steam valve of steam iron
Feature 1
It bends and reverses by snap action at any specified temperature. The displacement by this snap action is utilized for various controls.
Specifications
| Operating Temperature | -15°C〜250°C |
|---|---|
| Differential | 10deg or more |
| Temperature Tolerance | ±2°C〜5°C |
| Endurance frequency | 6,000 cycles or more |
