Pressure switchPS-10
Small sized high pressure switch

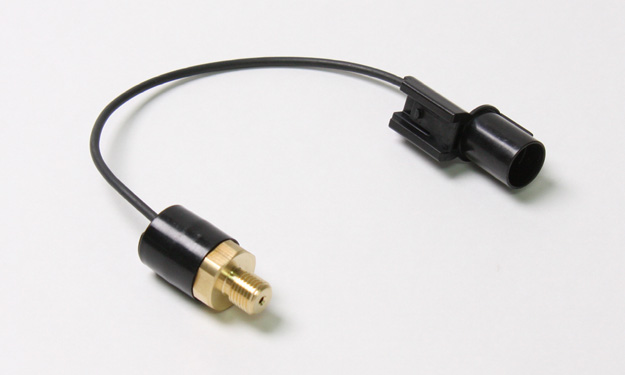

It is a pressure switch, a miniature version of the PS-20. It has been developed for a better design flexibility with respect to the installation space.

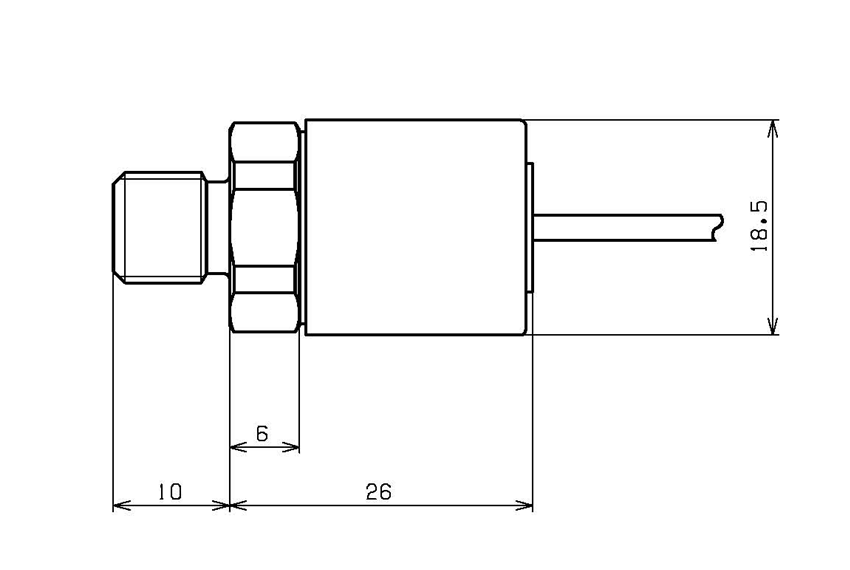

Dimensional Drawing
Approved by:
| UL | |
|---|---|
| CUL | |
| VDE | |
| JET | |
| CSA | |
| TUV | |
| SEMKO | |
| SAA | |
| CQC |
Applications
Automotive/Hydraulic equipment
Pneumatic equipment
Pneumatic equipment
Feature 1
With the lead-wire-pulled-out type adopted, any connector can be setup.
Specifications
| Type | Single pole - single throw |
|---|---|
| Rated Current | DC12V 3A |
| Operating Pressure | Any value between 1 and 4MPa can be specified. |
| Automatic Reset Pressure | Any value can be specified within the range that satisfies the differential. |
| Differential | 20% or more of operating pressure. |
| Pressure Torerance | ±0.2MPa or more |
| Endurance | 500,000 cycles |
| Dielectric Strength | AC500V 1min or AC600V 1sec |
| Insulation Resistance | 10MΩ or more(DC 500V) |
| Heat Resistance | 120°C |
